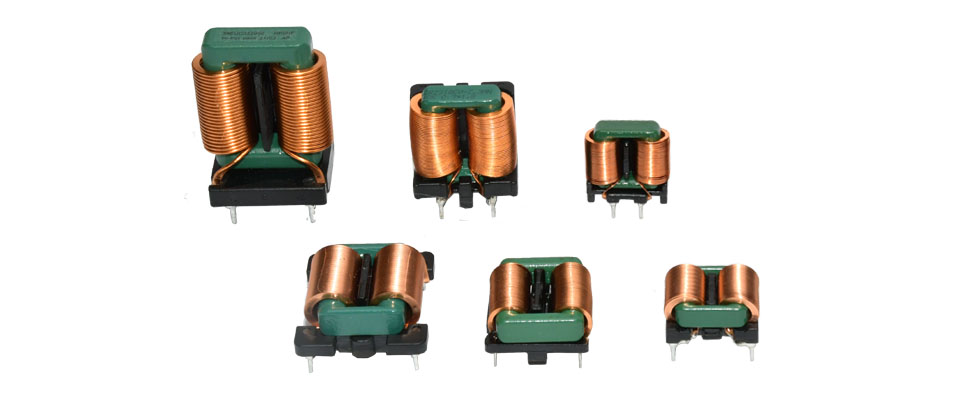

Line Filter

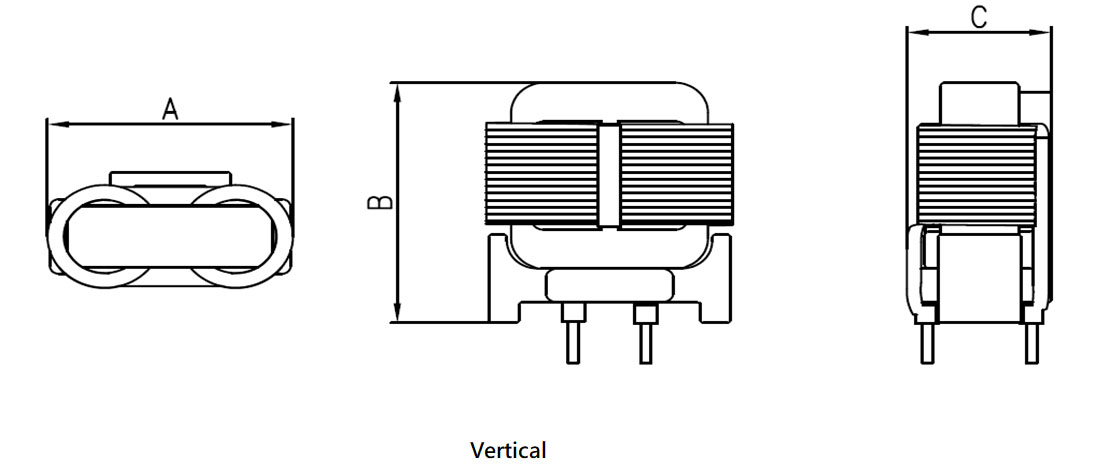

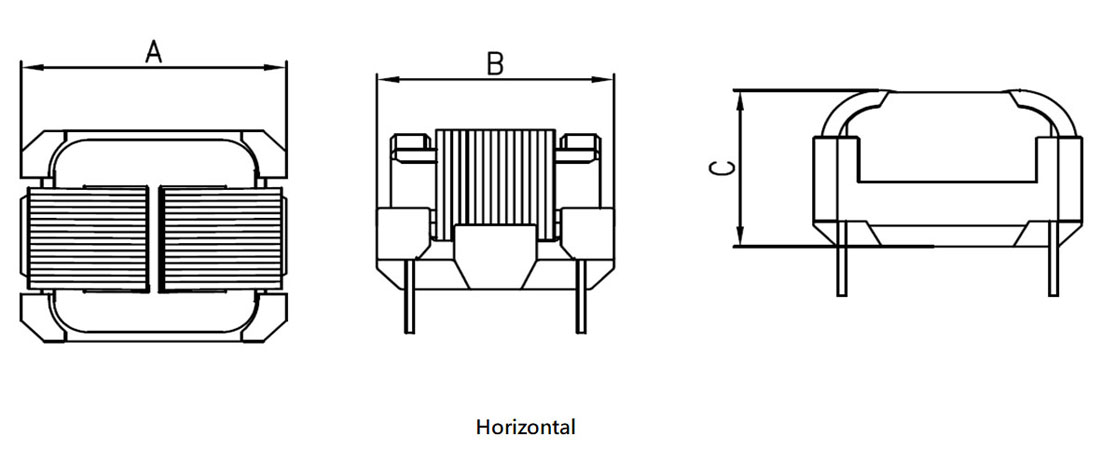

Power Rating Model Name TYPE Size (mm) Core Ae Core Le
A (Max) B (Max) C (Max) mm2 mm
90W~120W FT15 Vertical 21.0 21.0 12.0 20.0 44.8
FT15 Horizontal 21.0 16.2 12.8 20.0 44.8
120W~250W FT19 Horizontal 24.0 23.0 13.9 17.0 54.0
FT21 Vertical 24.0 26.0 13.8 21.3 58.0
FT21 Horizontal 23.5 22.5 14.0 21.3 58.0
250W~300W FT23 Vertical 26.0 29.0 17.0 26.6 57.3
FT23 Horizontal 28.2 31.2 14.2 26.6 57.3
400W~500W FT28 Vertical 27.0 34.5 18.5 27.8 67.6
FT28 Horizontal 28.0 32.0 16.8 27.8 67.6
600W~1000W FT33 Vertical 33.0 43.0 23.0 48.5 83.1
