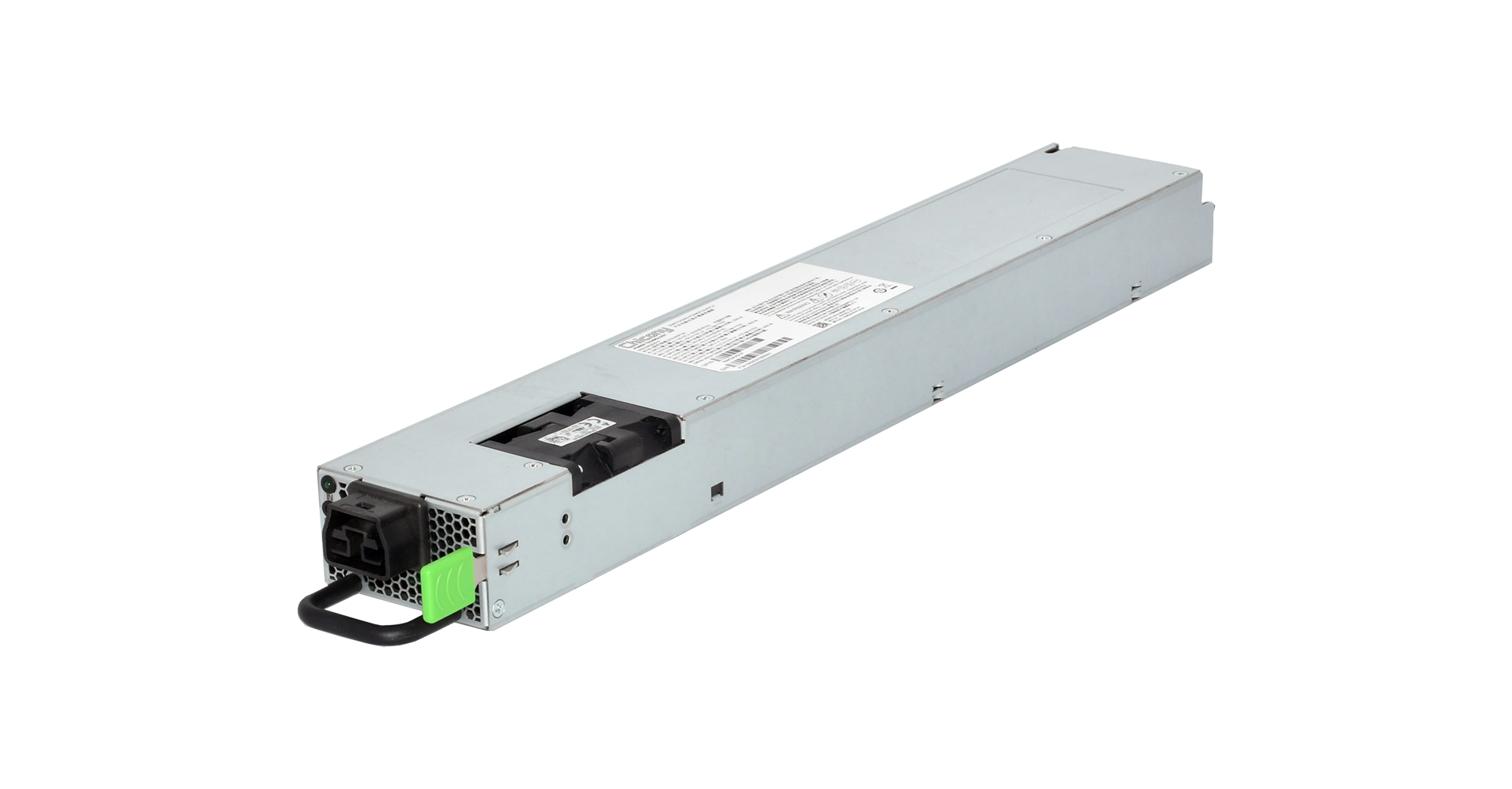

ORV3 PSU module
Complied with OCP specifications, Chicony power schedule a series Power module (3KW~5KW) to fulfill Power Shelf requirements. The PSU is a highline single phase AC-DC power supply that converts 200Vac~277Vac single-phase line into a main 48Vdc output.
| Part Number | Input Voltage | Output Watts |
Efficiency | Maximum Output Current (Amps) | Dimension (mm) | Remarks | Data Sheet | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +12V L/H | +50V L/H | +54V L/H | +12V sb | W | H | L | ||||||
| R4K0AX01P | 90-264Vac 164-300Vdc |
4000 | Titanium | 37.1/ 74.1 |
3 | 68 | 40 | 440 | ||||
| TBA | 90-264Vac 164-300Vdc |
3000 | > 97% | 59.28 | 3 | 73.5 | 40 | 520 | ||||
